UML Timing Diagram Tutorial

Introduction to UML Timing Diagrams

UML (Unified Modeling Language) timing diagrams are a specialized form of interaction diagrams used to illustrate the behavior of objects over a specific period. They focus on the timing constraints and the sequence of events, making them particularly useful for modeling real-time systems and performance analysis. This tutorial will guide you through the basics of UML timing diagrams, including their purpose, key elements, and how to create and interpret them.

Purpose of UML Timing Diagrams

UML timing diagrams serve several critical purposes in system design and analysis:

1. Modeling Real-Time Systems: They are essential for designing systems where timing is a crucial factor, such as embedded systems, communication protocols, and performance-critical applications.
2. Analyzing Timing Constraints: They help in understanding and analyzing the timing aspects of interactions between objects, ensuring that all timing constraints are met.
3. Performance Analysis: They are used to evaluate the performance of systems by modeling the timing of events and interactions.

Key Elements of UML Timing Diagrams

Lifeline

A lifeline represents an individual participant in the interaction, such as an object or actor. It is depicted as a horizontal bar that shows the existence of the participant over time.

State or Condition Timeline

A state or condition timeline represents the state of an object or a condition that must be met. It is shown as a horizontal bar with segments indicating different states or conditions over time.

Duration Constraint

A duration constraint specifies the duration within which a condition must be met. It is represented by a horizontal bar with two vertical lines indicating the start and end of the duration.

Time Constraint

A time constraint specifies a point in time by which a condition must be met. It is represented by a vertical line intersecting the lifeline at the specific time.

Destruction Occurrence

A destruction occurrence represents the point in time when an object is destroyed. It is depicted by an “X” at the end of the lifeline.

Notation

Notation in UML timing diagrams includes labels and annotations that provide additional information about the timing constraints and conditions.

Creating a UML Timing Diagram

Steps to Create a UML Timing Diagram

1. Identify Participants: Determine the objects, actors, or entities that will participate in the interaction.
2. Define Lifelines: Draw horizontal bars to represent the lifelines of the participants.
3. Add States or Conditions: Divide the lifelines into segments to represent different states or conditions over time.
4. Specify Duration Constraints: Add horizontal bars with vertical lines to indicate the duration within which conditions must be met.
5. Specify Time Constraints: Add vertical lines intersecting the lifelines to indicate specific points in time by which conditions must be met.
6. Add Destruction Occurrences: Place an “X” at the end of the lifeline to represent the destruction of the object.
7. Label and Annotate: Add labels and annotations to provide additional information about the timing constraints and conditions.

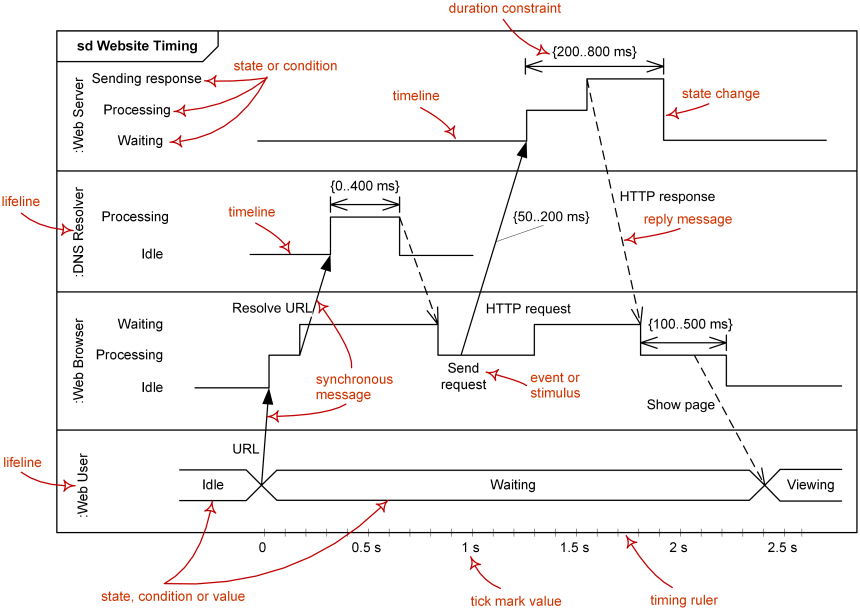

Example: Web Interaction Timing Diagram

Purpose

To model the timing aspects of a web interaction, specifically focusing on the timing of a web request and response cycle.

Participants

1. Web User: The individual interacting with the web.
2. Web Browser: The browser used to access the web.
3. DNS Resolver: The server that resolves domain names to IP addresses.
4. Web Server: The server hosting the web content.

Timing Diagram

1. Lifeline for Web User:
   • States/Conditions:
     • Idle: The user is not actively interacting with the web.
     • URL: The user enters a URL into the web browser.
     • Waiting: The user is waiting for the web page to load.
     • Viewing: The user is viewing the web page.
2. Lifeline for Web Browser:
   • States/Conditions:
     • Idle: The browser is not actively processing a request.
     • Processing: The browser is processing the user’s input or the server’s response.
     • Waiting: The browser is waiting for a response from the server.
   • Events/Stimuli:
     • Resolve URL: The browser resolves the URL to an IP address.
     • HTTP request: The browser sends an HTTP request to the web server.
     • Show page: The browser displays the web page to the user.
   • Timing Constraints:
     • The URL resolution process should take between 0 and 400 milliseconds.
     • The HTTP request should be sent within 50 to 200 milliseconds after resolving the URL.
     • The page should be shown to the user within 100 to 500 milliseconds after receiving the HTTP response.
3. Lifeline for DNS Resolver:
   • States/Conditions:
     • Idle: The DNS resolver is not actively resolving a domain name.
     • Processing: The DNS resolver is processing a domain name resolution request.
   • Timing Constraints:
     • The DNS resolution process should take between 0 and 400 milliseconds.
4. Lifeline for Web Server:
   • States/Conditions:
     • Waiting: The web server is waiting for an incoming request.
     • Processing: The web server is processing the incoming request.
     • Sending response: The web server is sending a response back to the web browser.
   • Timing Constraints:
     • The web server should send a response within 200 to 800 milliseconds of receiving the request.

Interactions and Timing Constraints

1. Web User to Web Browser:
   • The user enters a URL into the web browser, transitioning from “Idle” to “URL”.
   • The web browser resolves the URL, which should take between 0 and 400 milliseconds.
2. Web Browser to DNS Resolver:
   • The web browser sends a synchronous message to the DNS resolver to resolve the URL to an IP address.
   • The DNS resolver processes the request, which should take between 0 and 400 milliseconds.
3. Web Browser to Web Server:
   • The web browser sends an HTTP request to the web server, which should be sent within 50 to 200 milliseconds after resolving the URL.
   • The web server processes the request and sends a response back to the web browser.
   • The web server should send the response within 200 to 800 milliseconds of receiving the request.
4. Web Browser to Web User:
   • The web browser displays the web page to the user, which should occur within 100 to 500 milliseconds after receiving the HTTP response.
   • The user transitions from “Waiting” to “Viewing” the web page.

Interpreting UML Timing Diagrams

Understanding Lifelines

• Horizontal Bars: Represent the existence of the participant over time.
• Segments: Indicate different states or conditions over time.

Understanding Duration Constraints

• Horizontal Bars with Vertical Lines: Represent the duration within which a condition must be met.
• Start and End Points: Indicate the start and end of the duration.

Understanding Time Constraints

• Vertical Lines: Represent specific points in time by which conditions must be met.
• Intersection with Lifelines: Indicate the specific time on the lifeline.

Understanding Destruction Occurrences

• “X” Symbol: Represents the destruction of the object.
• End of Lifeline: The destruction occurrence is placed at the end of the lifeline.

Understanding Notation

• Labels and Annotations: Provide additional information about the timing constraints and conditions.
• Additional Information: Include any relevant details that help in understanding the timing aspects of the interaction.

Conclusion

UML timing diagrams are essential for modeling and analyzing the timing aspects of interactions between objects. By understanding the key elements and following the steps to create and interpret them, you can effectively use timing diagrams to reason about time and model real-time systems.
