Comprehensive Guide to Class Diagrams: Understanding and Creating Effective Designs

Introduction

Class diagrams are a fundamental part of the Unified Modeling Language (UML), providing a visual representation of the static structure of a system. They illustrate the classes, attributes, methods, and relationships between objects in the system. This guide will delve into the key concepts of class diagrams, using the attached diagram as an example, and provide guidelines, tips, and tricks for creating effective class diagrams.

Key Concepts of Class Diagrams

Class

A class represents a blueprint for creating objects. It encapsulates data (attributes) and behavior (methods). In the diagram, Card, MilesCard, Passenger, and MilesAccount are examples of classes.

Attribute

Attributes are the properties or data members of a class. For example, the MilesCard class has an attribute status.

Method

Methods are the functions or behaviors of a class. For instance, the Passenger class has methods like createMiles(), consumeMiles(), and cancelMiles().

Relationships

Relationships between classes can be of various types:

• Association: A general relationship between classes.
• Aggregation: A “part-of” relationship where one class is part of another.
• Composition: A strong “part-of” relationship where the lifecycle of the part is managed by the whole.
• Inheritance: A “is-a” relationship where one class inherits attributes and methods from another.
• Dependency: A relationship where one class uses another class.

Multiplicity

Multiplicity defines the number of instances of one class that can be associated with a single instance of another class. For example, the multiplicity between MilesCard and Card is “0..1 to 1,” indicating that a MilesCard can have zero or one Card.

Constraints

Constraints are rules or conditions that must be satisfied by the system. They can be user-defined or pre-defined by UML. In the diagram, {mc.number = ma.number} is a user-defined constraint, and {owner is either a person or a company} is a UML pre-defined constraint.

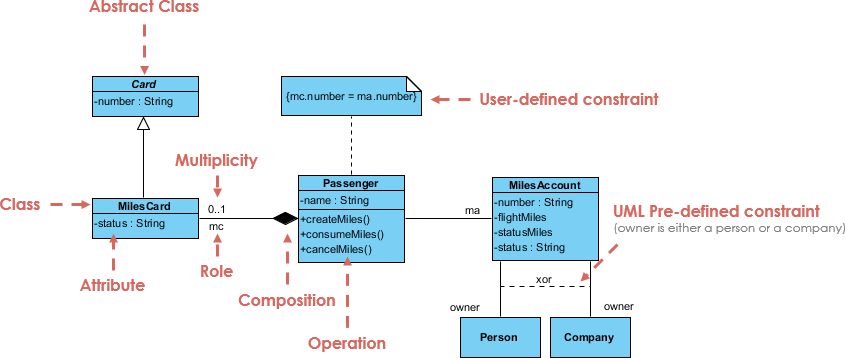

Understanding the Attached Diagram

Abstract Class

The Card class is an abstract class, indicated by the italicized name. It cannot be instantiated directly and serves as a base class for other classes.

Inheritance

The MilesCard class inherits from the Card class, as shown by the solid line with a hollow arrowhead. This means MilesCard inherits the attributes and methods of Card.

Multiplicity

The multiplicity between MilesCard and Card is “0..1 to 1,” meaning a MilesCard can have zero or one Card, but a Card can have only one MilesCard.

Composition

The Passenger class has a composition relationship with the MilesAccount class, indicated by the filled diamond. This means a Passenger owns a MilesAccount, and the lifecycle of the MilesAccount is managed by the Passenger.

XOR Constraint

The XOR constraint between Person and Company indicates that a MilesAccount can be owned by either a Person or a Company, but not both.

Guidelines for Creating Effective Class Diagrams

1. Identify the Main Classes

Start by identifying the main classes in your system. These are the core entities that represent the key concepts of your domain.

2. Define Attributes and Methods

For each class, define the attributes and methods. Attributes represent the data, and methods represent the behavior of the class.

3. Establish Relationships

Determine the relationships between the classes. Use the appropriate UML notations for associations, aggregations, compositions, inheritance, and dependencies.

4. Specify Multiplicity

Specify the multiplicity for each relationship to indicate the number of instances of one class that can be associated with a single instance of another class.

5. Add Constraints

Include any constraints that apply to the classes or their relationships. Constraints can be user-defined or pre-defined by UML.

6. Use Notes for Clarification

Use notes to provide additional information or clarification about the classes, attributes, methods, or relationships.

Tips and Tricks

1. Keep It Simple

Start with a simple diagram and gradually add more details as needed. Avoid overcomplicating the diagram with too many classes or relationships.

2. Use Consistent Naming

Use consistent and meaningful names for classes, attributes, and methods. This makes the diagram easier to understand and maintain.

3. Group Related Classes

Group related classes together to improve the readability of the diagram. Use packages or namespaces to organize the classes.

4. Validate the Diagram

Validate the diagram against the system requirements to ensure it accurately represents the system’s structure and behavior.

5. Iterate and Refine

Class diagrams are iterative. Start with a rough sketch and refine it as you learn more about the system or problem.

6. Collaborate with Others

Discuss your diagrams with peers or mentors to get feedback and improve your skills. Collaboration can provide new perspectives and insights.

Conclusion

Class diagrams are essential for visualizing and designing the static structure of a system. By understanding the key concepts of classes, attributes, methods, relationships, multiplicity, and constraints, you can create effective class diagrams that accurately represent your system’s architecture. Following the guidelines, tips, and tricks provided in this guide will help you create clear, concise, and meaningful class diagrams that facilitate communication and collaboration among stakeholders.

Example: Miles Card System

Let’s revisit the attached diagram to reinforce the concepts discussed:

1. Abstract Class: The Card class is an abstract class, serving as a base for the MilesCard class.
2. Inheritance: The MilesCard class inherits from the Card class.
3. Multiplicity: The multiplicity between MilesCard and Card is “0..1 to 1.”
4. Composition: The Passenger class has a composition relationship with the MilesAccount class.
5. XOR Constraint: The MilesAccount can be owned by either a Person or a Company, but not both.

By following this comprehensive guide, you can effectively create and understand class diagrams, ensuring a robust and well-designed system architecture.
