Case Study: ArchiMate Motivation Layer

Introduction

ArchiMate is a comprehensive modeling language used for enterprise architecture. It provides a standardized way to describe, analyze, and visualize the relationships among business processes, organizational structures, information flows, technical infrastructure, and the motivations behind these elements. The Motivation Layer in ArchiMate is particularly useful for understanding the strategic goals, outcomes, principles, requirements, and constraints that drive an organization’s architecture.

This case study will explore the Motivation Layer using a specific example to illustrate key concepts and their interrelationships.

Purpose of the Motivation Layer

The purpose of introducing the Motivation Layer in ArchiMate is to provide a structured way to model and understand the strategic drivers, goals, and requirements that guide the design and implementation of an enterprise architecture. This layer helps align business strategy with the architectural elements, ensuring that all components of the architecture work together to achieve the organization’s objectives. Here are the key purposes of the Motivation Layer:

  1. Strategic Alignment:

    • Goals and Objectives: The Motivation Layer allows organizations to clearly define their strategic goals and objectives. This ensures that all architectural decisions are aligned with the overarching business strategy.
    • Outcomes: By specifying the desired outcomes, organizations can measure the success of their architectural initiatives and ensure they are on track to achieve their goals.

  2. Decision-Making Support:

    • Principles: The layer includes principles that guide decision-making processes. These principles ensure consistency and coherence in architectural choices, helping to avoid conflicting decisions.
    • Requirements and Constraints: By explicitly modeling requirements and constraints, the Motivation Layer helps in making informed decisions that consider all relevant factors and limitations.

  3. Stakeholder Communication:

    • Clear Visualization: The Motivation Layer provides a visual representation of the strategic drivers, making it easier to communicate the rationale behind architectural decisions to stakeholders.
    • Common Understanding: It helps in creating a shared understanding among different stakeholders, including business leaders, architects, and IT professionals, about the strategic direction and priorities.

  4. Change Management:

    • Adaptability: By clearly defining the motivations behind the architecture, organizations can better manage changes. When strategic goals or external factors change, the Motivation Layer helps in understanding the impact on the architecture and making necessary adjustments.
    • Traceability: The layer enables traceability from high-level goals down to specific architectural elements, making it easier to track the impact of changes and ensure that the architecture remains aligned with the business strategy.

  5. Risk Management:

    • Identifying Risks: The Motivation Layer helps in identifying potential risks associated with architectural decisions by explicitly modeling constraints and negative influences.
    • Mitigation Strategies: By understanding the motivations and principles, organizations can develop mitigation strategies to address identified risks.

  6. Performance Measurement:

    • Key Performance Indicators (KPIs): The layer allows for the definition of KPIs that can be used to measure the performance of the architecture against the strategic goals and outcomes.
    • Continuous Improvement: By regularly reviewing the Motivation Layer, organizations can identify areas for improvement and make data-driven decisions to enhance their architecture.

Key Concepts of the Motivation Layer

The Motivation Layer in ArchiMate consists of several key elements:

  1. Goal: A desired state or outcome that the organization aims to achieve.
  2. Outcome: The result of achieving a goal, often measurable and specific.
  3. Principle: A general rule or guideline that influences decision-making and actions.
  4. Requirement: A condition or capability needed to achieve a goal or outcome.
  5. Constraint: A limitation or restriction that must be considered when achieving goals or outcomes.

Case Study Example

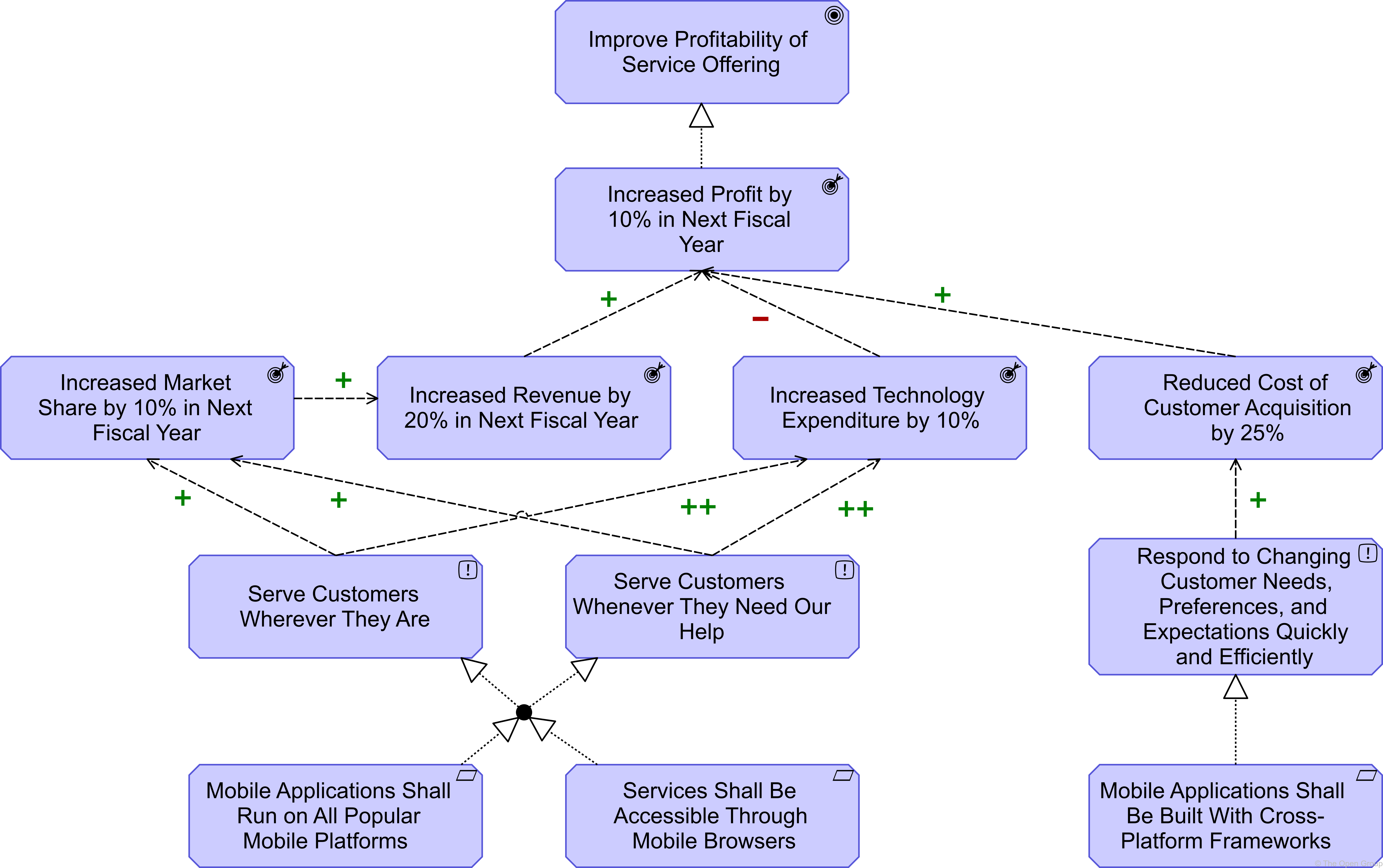

ex Goal Outcome Principle Requirement and Constraint

Goal

Goal: Improve Profitability of Service Offering

Outcomes

  1. Outcome: Increased Profit by 10% in Next Fiscal Year

    • Positive Influences:
      • Increased Revenue by 20% in Next Fiscal Year
      • Reduced Cost of Customer Acquisition by 25%
    • Negative Influence:
      • Increased Technology Expenditure by 10%

  2. Outcome: Increased Revenue by 20% in Next Fiscal Year

    • Positive Influence:
      • Increased Market Share by 10% in Next Fiscal Year

  3. Outcome: Reduced Cost of Customer Acquisition by 25%

    • Realized by Principle: Respond to Changing Customer Needs, Preferences, and Expectations Quickly and Efficiently

Principles

  1. Principle: Serve Customers Wherever They Are
  2. Principle: Serve Customers Whenever They Need Our Help

Requirements

  1. Requirement: Mobile Applications Shall Run on All Popular Mobile Platforms
  2. Requirement: Services Shall Be Accessible Through Mobile Browsers

Constraint

Constraint: Mobile Applications Shall Be Built With Cross-Platform Frameworks

Analysis of the Motivation Layer

Goal Realization

The goal “Improve Profitability of Service Offering” is realized by the outcome “Increased Profit by 10% in Next Fiscal Year.” This outcome is influenced by several other outcomes, both positively and negatively.

Positive Influences

  1. Increased Revenue by 20% in Next Fiscal Year: This outcome positively influences the goal of increasing profit. It is further influenced by the outcome “Increased Market Share by 10% in Next Fiscal Year.”
  2. Reduced Cost of Customer Acquisition by 25%: This outcome also positively influences the goal of increasing profit. It is realized by the principle “Respond to Changing Customer Needs, Preferences, and Expectations Quickly and Efficiently.”

Negative Influence

  1. Increased Technology Expenditure by 10%: This outcome negatively influences the goal of increasing profit, as it represents an additional cost that must be managed.

Principles and Requirements

The principles “Serve Customers Wherever They Are” and “Serve Customers Whenever They Need Our Help” are realized by the requirements “Mobile Applications Shall Run on All Popular Mobile Platforms” and “Services Shall Be Accessible Through Mobile Browsers.” These principles ensure that the organization can meet customer needs effectively, thereby contributing to the outcomes of increased market share and revenue.

Constraint

The constraint “Mobile Applications Shall Be Built With Cross-Platform Frameworks” supports the principle “Respond to Changing Customer Needs, Preferences, and Expectations Quickly and Efficiently.” This constraint ensures that the organization can develop and deploy mobile applications efficiently, reducing the cost of customer acquisition.

Conclusion

The Motivation Layer in ArchiMate provides a structured way to understand the strategic goals, outcomes, principles, requirements, and constraints that drive an organization’s architecture. By using this layer, organizations can align their architectural decisions with their strategic objectives, ensuring that all elements work together to achieve the desired outcomes.

In summary, the Motivation Layer in ArchiMate serves as a critical tool for aligning business strategy with enterprise architecture, supporting decision-making, facilitating stakeholder communication, managing change and risks, and measuring performance. It ensures that the architecture is not only technically sound but also strategically relevant and effective in achieving the organization’s goals.

This case study demonstrates how the Motivation Layer can be used to model and analyze the relationships between goals, outcomes, principles, requirements, and constraints, providing a clear and comprehensive view of the organization’s strategic direction.
